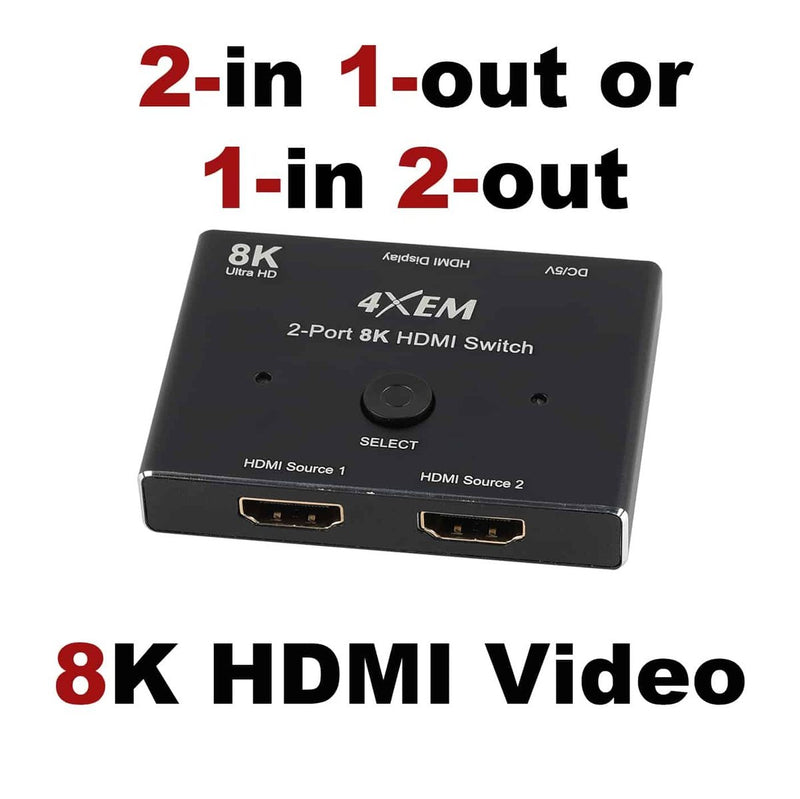

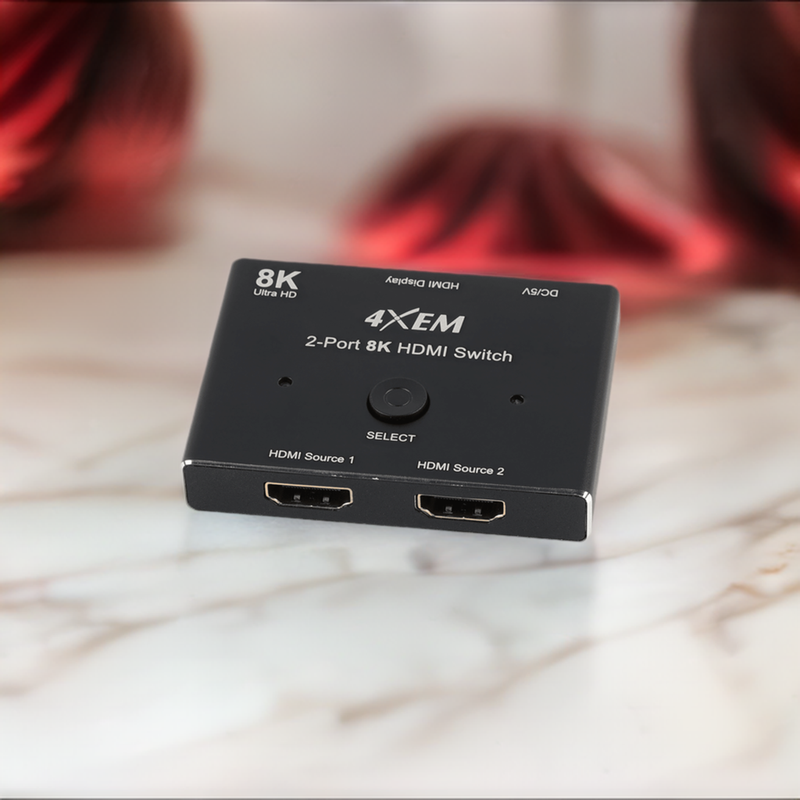

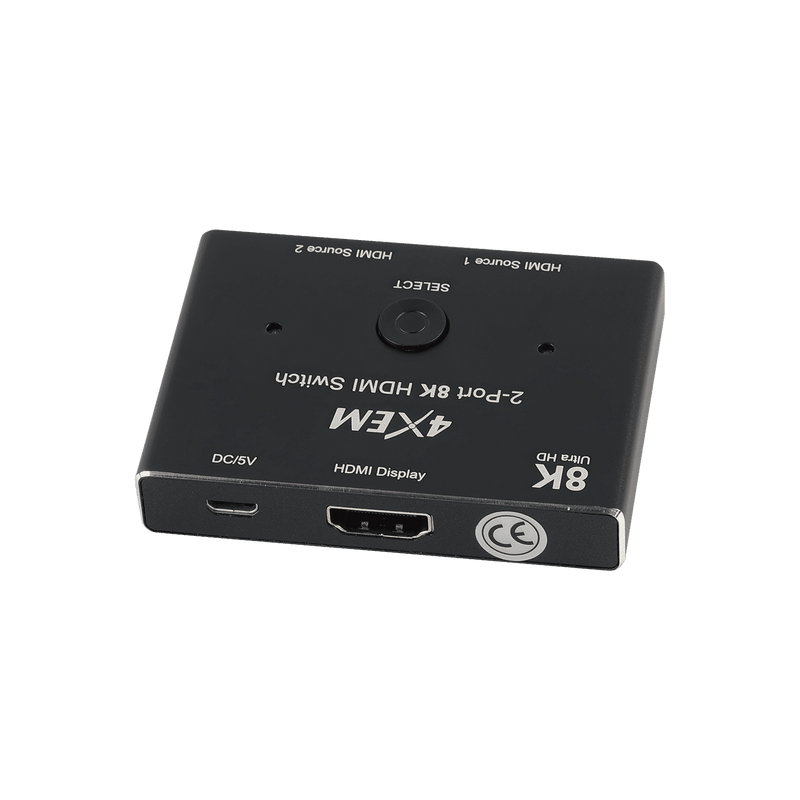

4XEM 8K 2-port HDMI Switch

SKU: 4X8KW003

Vendor 4XEM
Regular price $66.00
Sale price $66.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
86 Units in Stock.
This is a pre order item. We will ship it when it comes in stock.

Where To Buy

shi_com $53.00govconnection_com $69.95connection_com $69.95provantage_com $48.85
4XEM 8K 2-port HDMI Switch

4XEM’s 8K 2-port HDMI switch offers manually controlled video switching at 8K, 5K or 4K quality resolution. Able to function in two distinct modes, this switch can either connect two devices to a monitor or one device to two monitors (simultaneous video output is not supported). Regardless of function the video quality will remain at the desired high-quality resolution. Set-up is very intuitive plug and play designed for quick video access, coupled with its portable design this switch can be used transferred as needed. Boost your HDMI video resolutions easily with 4XEM’s 8K HDMI switch.

Problem it solves: Offering 8K, 5K, and 4K video quality and switch between displays or devices, 4XEM’s 8K 2-port HDMI Switch is a great addition to any workstation.



Features:
  • Two HDMI ports
  • Comes with DC power cable
  • Supports 2 device connection to one monitor
  • Supports one device two 2 monitors
  • Supports 8K@30Hz
  • Supports 5K@60
  • Supports 4K@120Hz, 60Hz
  • LED power indicator
  • Compatible with Mac OSX and Windows
  • Manually controlled device control

4X8KW003 DATA SHEET

Specifications:
Warranty Information Warranty 1 Year
Hardware Chipset ID Diodes - PI3HDX12221
Industry Standards HDMI 2.1
DSC 1.2
Remote No
Connector(s) Video Connector Type HDMI
Video Input/Outputs 3
Other Micro-USB (for power only)
Performance Max Uncompressed Bandwidth 48.0Gbps/42.67Gbps
Maximum Digital Resolutions 7680x4320 (8K), 50Hz, 8bpc (Uncompressed)
3840x2160 (4K), 144Hz, 10bpc (Uncompressed)
Power Power Source USB Powered (Adaptor not included)
Input Voltage 5V DC @ 2A
Power Consumption 10W
Physical Characteristics Color Black
Shell Material Aluminum
Buttons/Switches I/O Selector
LED Indicators 2 (Active I/O)
Power Cable (Micro-USB) Length 3.05 ft
Product Height 0.53 in
Product Width 2.76 in
Product Length 2.05 in
Weight of Product 1.55 oz
Packaging Information Package Type Poly-bag
Package Height 7.76 in
Package Width 5.83 in
Package Length 0.87 in
Shipping (Package) Weight 2.54 oz
What's in the Box Included in Package 1x HDMI Bidirectional Switch
1x Micro-USB Power Cable
Notes Notes External Power Supply required; HDMI voltage insufficient for proper operation.

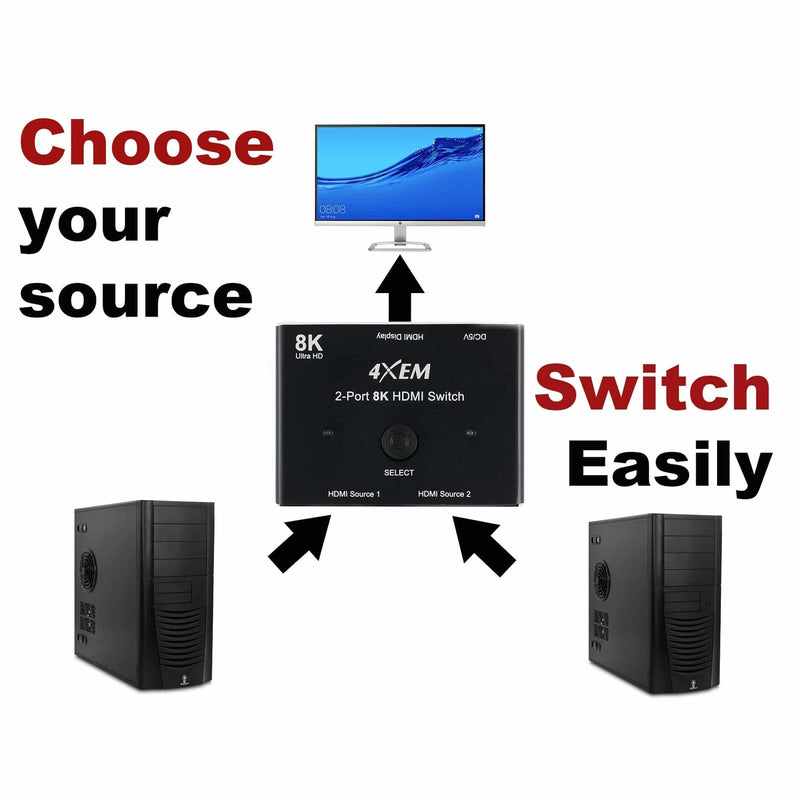

2 operating modes; single display with selectable video source, and single video source with selectable display.
Higher bandwidths (resolution, refresh rate, colour depth) are achievable with DSC (This feature must also be supported by your display and graphics card/video source equipment).
* Product appearance and specifications are subject to change without notice.
* Weights and measurements are approximate.

Selected page contains no content. Add content to this page in the page editor.

Product Overview
4XEM 8K 2-port HDMI Switch

4XEM’s 8K 2-port HDMI switch offers manually controlled video switching at 8K, 5K or 4K quality resolution. Able to function in two distinct modes, this switch can either connect two devices to a monitor or one device to two monitors (simultaneous video output is not supported). Regardless of function the video quality will remain at the desired high-quality resolution. Set-up is very intuitive plug and play designed for quick video access, coupled with its portable design this switch can be used transferred as needed. Boost your HDMI video resolutions easily with 4XEM’s 8K HDMI switch.

Problem it solves: Offering 8K, 5K, and 4K video quality and switch between displays or devices, 4XEM’s 8K 2-port HDMI Switch is a great addition to any workstation.



Features:
  • Two HDMI ports
  • Comes with DC power cable
  • Supports 2 device connection to one monitor
  • Supports one device two 2 monitors
  • Supports 8K@30Hz
  • Supports 5K@60
  • Supports 4K@120Hz, 60Hz
  • LED power indicator
  • Compatible with Mac OSX and Windows
  • Manually controlled device control

4X8KW003 DATA SHEET

Specifications:
Warranty Information Warranty 1 Year
Hardware Chipset ID Diodes - PI3HDX12221
Industry Standards HDMI 2.1
DSC 1.2
Remote No
Connector(s) Video Connector Type HDMI
Video Input/Outputs 3
Other Micro-USB (for power only)
Performance Max Uncompressed Bandwidth 48.0Gbps/42.67Gbps
Maximum Digital Resolutions 7680x4320 (8K), 50Hz, 8bpc (Uncompressed)
3840x2160 (4K), 144Hz, 10bpc (Uncompressed)
Power Power Source USB Powered (Adaptor not included)
Input Voltage 5V DC @ 2A
Power Consumption 10W
Physical Characteristics Color Black
Shell Material Aluminum
Buttons/Switches I/O Selector
LED Indicators 2 (Active I/O)
Power Cable (Micro-USB) Length 3.05 ft
Product Height 0.53 in
Product Width 2.76 in
Product Length 2.05 in
Weight of Product 1.55 oz
Packaging Information Package Type Poly-bag
Package Height 7.76 in
Package Width 5.83 in
Package Length 0.87 in
Shipping (Package) Weight 2.54 oz
What's in the Box Included in Package 1x HDMI Bidirectional Switch
1x Micro-USB Power Cable
Notes Notes External Power Supply required; HDMI voltage insufficient for proper operation.
2 operating modes; single display with selectable video source, and single video source with selectable display.
Higher bandwidths (resolution, refresh rate, colour depth) are achievable with DSC (This feature must also be supported by your display and graphics card/video source equipment).
* Product appearance and specifications are subject to change without notice.
* Weights and measurements are approximate.
