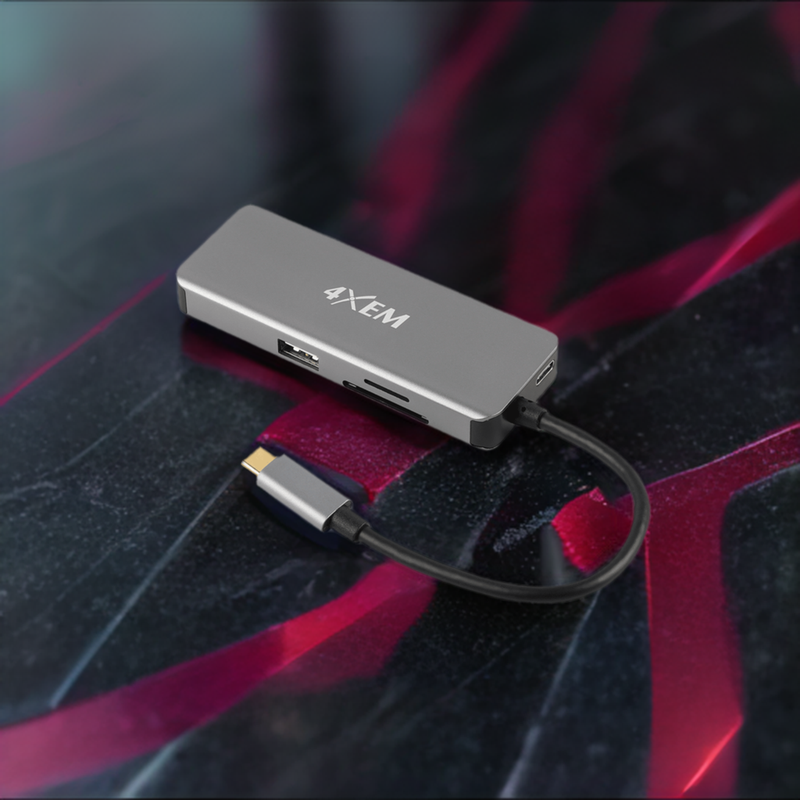

4XEM 8-in 1-out Type-C to HDMI/USB 3.0/TF/SD and USB-C adapter with Power Delivery

SKU: 4XHB01

Vendor 4XEM
Regular price $47.99
Sale price $47.99 Regular price $69.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
87 Units in Stock
This is a pre order item. We will ship it when it comes in stock.

Where To Buy

4XEM 8-in 1-out Type-C to HDMI/USB 3.0/TF/SD and USB-C adapter with Power Delivery

Connectivity has never been easier with 4XEM’s 8-in 1-out Type-C to HDMI/USB 3.0/TF/SD and USB-C adapter with Power Delivery. More easily understood as a multi-port adapter, this device is an ideal solution to any problem revolving around needing to expand a work or home tech station. 8 unique ports, including HDMI, SD card reader and other USB ports, this one device can itself create an impressive workstation. Supporting 4K video resolution as well as Power Delivery and PD pass through, this adapter can also upgrade a station to be more efficient. Simple plug and play technology means your station will not be down for a long set-up time. Upgrade and solve your connectivity problems with 4XEM.

Problem it solves: Extend your connections quickly and efficiently with 4XEM’s 8-in 1-out data and display adapter.


Features:
  • USB 3.1 Male connector
  • 1 HDMI 1.4 port
  • 1 USB 3.0 Type C port
  • 1 USB 2.0 Type A port
  • 2 USB 3.0 Type A ports
  • 1 SD/TF Card slot
  • 1 Micro SD card slot
  • 1x USB Type C port (for Power Delivery only)
  • Host Device requires USB Power Delivery 3.0 and DP Alt mode support
  • Supports 4K video resolution (3840x2160 @ 30 Hz)
  • Supports PD pass through up to 60W
  • Compatible with Windows 10 and Mac OS



4XHB01 DATA SHEET

Specifications:
Warranty Information Warranty 1 Year
Hardware 4K Support Yes
Fast-Charge Port(s) No
Displays Supported 1
Interface USB 3.1 Gen 1
Bus Type USB-C
Industry Standards USB 3.0 - Backward compatible with USB 2.0 and 1.1
DisplayPort 1.2 Alt-Mode
HDMI 1.4
HDCP 1.4
Power Delivery 3.0
Chipset ID Algoltek - AG9311
Via Labs - VL817
Genesys Logic - GL823
Via Labs - VL160
Connector(s) Host Connector USB Type-C (24 pin) USB 3.1 Gen 1 (5 Gbps)
Host Connector Type Fixed Attached Cable
Connector Type(s)/Rate(s) 1x HDMI 1.4 (10.2 Gbps)
1x USB 3.0 Type-C (5 Gbps)
1x USB 2.0 Type-A (480 Mbps)
2x USB 3.0 Type-A (5 Gbps)
1x SD/TF Card Slot
1x MicroSD Card Slot
1x USB Type-C (Used for Power Delivery only)
Performance Audio Specifications Up to 2 Channels (via HDMI)
Maximum Digital Resolutions 3840x2160 (4K), 30Hz, 8bpc
Software OS Compatibility Windows 10
Mac OS
Power Power Source USB-Powered
Power Consumption 10W
PD Pass-through Up to 60W
Physical Characteristics Color Grey
Shell Material Aluminum
Attached Cable Length 5.09 in
Product Height 0.53 in
Product Width 1.51 in
Product Length (Body) 3.97 in
Product Length (Overall) 10.83 in
Weight of Product 1.76 oz
Packaging Information Package Type Poly-bag
Package Height 7.76 in
Package Width 5.83 in
Package Length 0.56 in
Shipping (Package) Weight 1.98 oz
What's in the Box Included in Package 1x USB-C Multi-Port Adapter
Notes Notes A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP alt mode).
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP alt mode.
Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter).
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
This adaptor used 2 DP lanes for video output (via HDMI) and remaining lanes of other dock functions.
* Product appearance and specifications are subject to change without notice.
* Weights and measurements are approximate.

Selected page contains no content. Add content to this page in the page editor.

Product Overview
4XEM 8-in 1-out Type-C to HDMI/USB 3.0/TF/SD and USB-C adapter with Power Delivery

Connectivity has never been easier with 4XEM’s 8-in 1-out Type-C to HDMI/USB 3.0/TF/SD and USB-C adapter with Power Delivery. More easily understood as a multi-port adapter, this device is an ideal solution to any problem revolving around needing to expand a work or home tech station. 8 unique ports, including HDMI, SD card reader and other USB ports, this one device can itself create an impressive workstation. Supporting 4K video resolution as well as Power Delivery and PD pass through, this adapter can also upgrade a station to be more efficient. Simple plug and play technology means your station will not be down for a long set-up time. Upgrade and solve your connectivity problems with 4XEM.

Problem it solves: Extend your connections quickly and efficiently with 4XEM’s 8-in 1-out data and display adapter.


Features:
  • USB 3.1 Male connector
  • 1 HDMI 1.4 port
  • 1 USB 3.0 Type C port
  • 1 USB 2.0 Type A port
  • 2 USB 3.0 Type A ports
  • 1 SD/TF Card slot
  • 1 Micro SD card slot
  • 1x USB Type C port (for Power Delivery only)
  • Host Device requires USB Power Delivery 3.0 and DP Alt mode support
  • Supports 4K video resolution (3840x2160 @ 30 Hz)
  • Supports PD pass through up to 60W
  • Compatible with Windows 10 and Mac OS



4XHB01 DATA SHEET

Specifications:
Warranty Information Warranty 1 Year
Hardware 4K Support Yes
Fast-Charge Port(s) No
Displays Supported 1
Interface USB 3.1 Gen 1
Bus Type USB-C
Industry Standards USB 3.0 - Backward compatible with USB 2.0 and 1.1
DisplayPort 1.2 Alt-Mode
HDMI 1.4
HDCP 1.4
Power Delivery 3.0
Chipset ID Algoltek - AG9311
Via Labs - VL817
Genesys Logic - GL823
Via Labs - VL160
Connector(s) Host Connector USB Type-C (24 pin) USB 3.1 Gen 1 (5 Gbps)
Host Connector Type Fixed Attached Cable
Connector Type(s)/Rate(s) 1x HDMI 1.4 (10.2 Gbps)
1x USB 3.0 Type-C (5 Gbps)
1x USB 2.0 Type-A (480 Mbps)
2x USB 3.0 Type-A (5 Gbps)
1x SD/TF Card Slot
1x MicroSD Card Slot
1x USB Type-C (Used for Power Delivery only)
Performance Audio Specifications Up to 2 Channels (via HDMI)
Maximum Digital Resolutions 3840x2160 (4K), 30Hz, 8bpc
Software OS Compatibility Windows 10
Mac OS
Power Power Source USB-Powered
Power Consumption 10W
PD Pass-through Up to 60W
Physical Characteristics Color Grey
Shell Material Aluminum
Attached Cable Length 5.09 in
Product Height 0.53 in
Product Width 1.51 in
Product Length (Body) 3.97 in
Product Length (Overall) 10.83 in
Weight of Product 1.76 oz
Packaging Information Package Type Poly-bag
Package Height 7.76 in
Package Width 5.83 in
Package Length 0.56 in
Shipping (Package) Weight 1.98 oz
What's in the Box Included in Package 1x USB-C Multi-Port Adapter
Notes Notes A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP alt mode).
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP alt mode.
Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter).
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
This adaptor used 2 DP lanes for video output (via HDMI) and remaining lanes of other dock functions.
* Product appearance and specifications are subject to change without notice.
* Weights and measurements are approximate.
