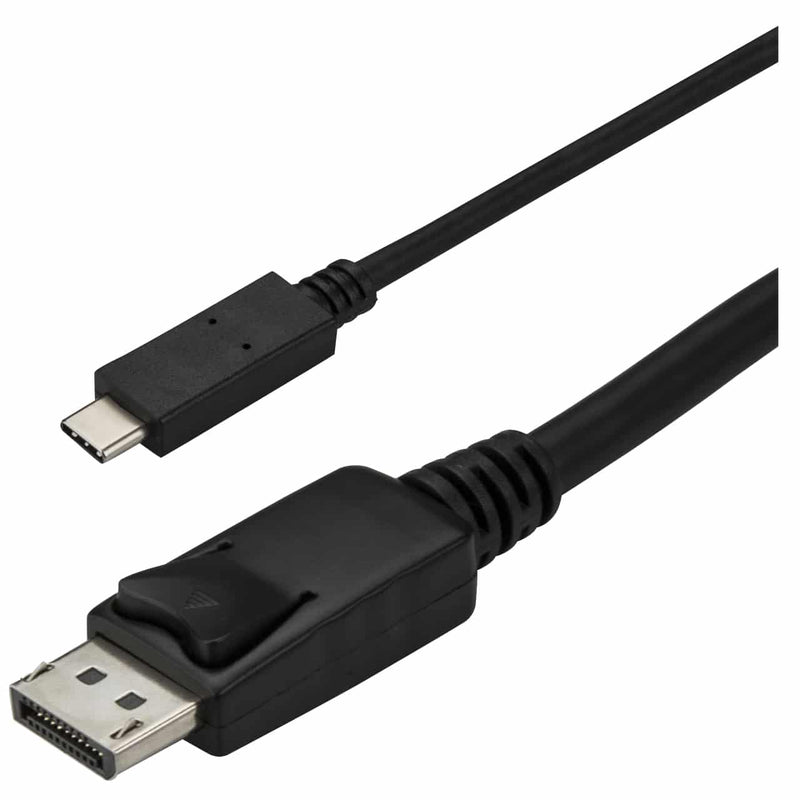

4XEM USB-C to DisplayPort Cable - 10FT

SKU: 4XUSBCDISPCBL10

Vendor 4XEM
Regular price $39.99
Sale price $39.99 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Where To Buy

shi_com $24.00govconnection_com $29.95connection_com $29.95insight_com $24.99provantage_com $20.14
4XEM USB-C to DisplayPort Cable - 10FT

Easily connect your USB Type-C device to an HDTV, monitor or projector with 4XEM's 10ft USB Type-C to DisplayPort Male Adapter (4XUSBCDISPCBL10). USB Type-C signals are converted to support a maximum digital resolution of 2160p 4K UHD (3840x2160) @ 60Hz refresh rate as well as up to 7.1 channels of surround sound audio. A quality and durable design ensures long life enjoyment.

Special Note: Your USB-C Port must support DP Alt Mode or Thunderbolt 3 in order to work with this adapter.

Problem it solves: Easily convert a USB Type-C signal to DisplayPort and present on the big screen. Plug and play!

Backed by our 4XEM unmatched 2 year Warranty!

4XEM gear is respected industry wide for its high performance, premium quality and durability.




Features:
  • USB-C 3.1 Type-C male compatible with Thunderbolt 3 ports
  • Plug and play without the need for drivers or software
  • Use with all Mac or PC with USB-c
  • Transmits video and audio signal over DP
  • Resolution support over DP up to UHD 4K @60Hz
  • Supports DisplayPort 1.2 and former standards
  • 10 ft length



4XUSBCDISPCBL10 DATA SHEET

Specifications:
Warranty Information
  Warranty 2 years
Hardware
  Active or Passive cable Active
  Chip ID Unavailable
  Direction Unidirectional
  Video Source USB-C
  Display DisplayPort
  Cable Jacket Type PVC - Polyvinyl Chloride
  Cable Shield Type Aluminum-Mylar Foil with Braid
  Connector Plating Gold
  Bandwidth HBR2 - 21.60Gbps/17.28Gbps (DP1.2)
Connector(s)

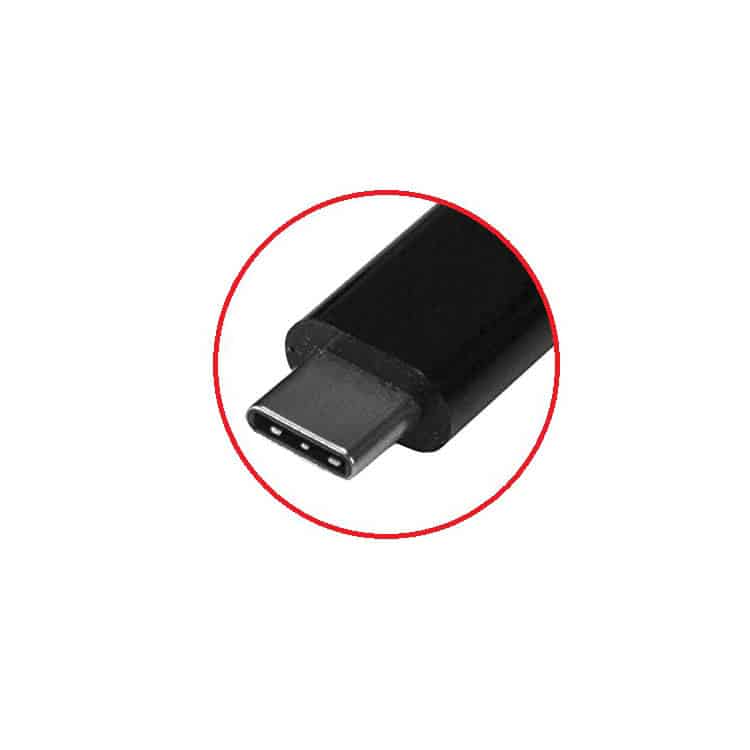

  Connector A 1 - USB Type-C (24 pin) DP Alt Mode Male
  Connector B 1 - DisplayPort (20 pin) Male
Physical Characteristics
  Cable Length 10 ft [3.05 m]
  Cable OD 0.185 in [4.7 mm]
  Color Black
  Weight of Product 3.2 oz [90 g]
  Wire Gauge 28 AWG
Packaging Information
  Package Height 9.65 in [245 mm]
  Package Length 1.03 in [26.2 mm]
  Package Width 5.08 in [129 mm]
  Shipping (Package) Weight 3.5 oz [102 g]
What's in the Box
  Included in Package 1 - 10 ft USB-C to DisplayPort Cable - M/M

Notes System Requirements Your USB-C port must support DP Alt Mode or Thunderbolt 3 in order to work with this adaptor

Selected page contains no content. Add content to this page in the page editor.

Product Overview
4XEM USB-C to DisplayPort Cable - 10FT

Easily connect your USB Type-C device to an HDTV, monitor or projector with 4XEM's 10ft USB Type-C to DisplayPort Male Adapter (4XUSBCDISPCBL10). USB Type-C signals are converted to support a maximum digital resolution of 2160p 4K UHD (3840x2160) @ 60Hz refresh rate as well as up to 7.1 channels of surround sound audio. A quality and durable design ensures long life enjoyment.

Special Note: Your USB-C Port must support DP Alt Mode or Thunderbolt 3 in order to work with this adapter.

Problem it solves: Easily convert a USB Type-C signal to DisplayPort and present on the big screen. Plug and play!

Backed by our 4XEM unmatched 2 year Warranty!

4XEM gear is respected industry wide for its high performance, premium quality and durability.




Features:
  • USB-C 3.1 Type-C male compatible with Thunderbolt 3 ports
  • Plug and play without the need for drivers or software
  • Use with all Mac or PC with USB-c
  • Transmits video and audio signal over DP
  • Resolution support over DP up to UHD 4K @60Hz
  • Supports DisplayPort 1.2 and former standards
  • 10 ft length



4XUSBCDISPCBL10 DATA SHEET

Specifications:
Warranty Information
  Warranty 2 years
Hardware
  Active or Passive cable Active
  Chip ID Unavailable
  Direction Unidirectional
  Video Source USB-C
  Display DisplayPort
  Cable Jacket Type PVC - Polyvinyl Chloride
  Cable Shield Type Aluminum-Mylar Foil with Braid
  Connector Plating Gold
  Bandwidth HBR2 - 21.60Gbps/17.28Gbps (DP1.2)
Connector(s)
  Connector A 1 - USB Type-C (24 pin) DP Alt Mode Male
  Connector B 1 - DisplayPort (20 pin) Male
Physical Characteristics
  Cable Length 10 ft [3.05 m]
  Cable OD 0.185 in [4.7 mm]
  Color Black
  Weight of Product 3.2 oz [90 g]
  Wire Gauge 28 AWG
Packaging Information
  Package Height 9.65 in [245 mm]
  Package Length 1.03 in [26.2 mm]
  Package Width 5.08 in [129 mm]
  Shipping (Package) Weight 3.5 oz [102 g]
What's in the Box
  Included in Package 1 - 10 ft USB-C to DisplayPort Cable - M/M

Notes System Requirements Your USB-C port must support DP Alt Mode or Thunderbolt 3 in order to work with this adaptor
