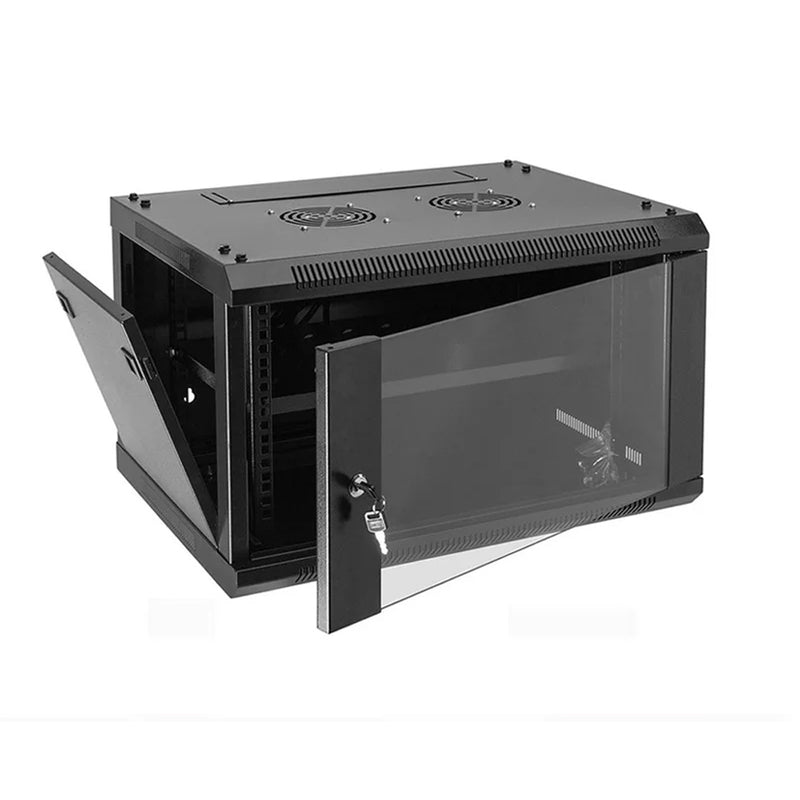

4XEM 6U 24” Deep Wall Mount Server Rack
4XEM’s 6U 19"wall mounted server rack provides a durable and solid design for rack-mount servers, switches and other networking equipment. Our deeper cabinets offer 24" of space for larger rack-mount equipment such as High-Capacity PoE Switches. The 4XEM 6U server cabinet features heavy gauge material to ensure a stable installation platform. The universal standard design is compatible with 19" equipment from popular manufacturers. The 4XEM deep wall mounted racks all have a 180-degree lockable front tempered glass door, removable side panels, and cable entry locations at the top and bottom of the cabinet. They also sport 2x 120mm fan cut-outs on the top panel for optional cooling. They are designed specifically for small business, home offices, restaurants, classrooms and IT professionals!

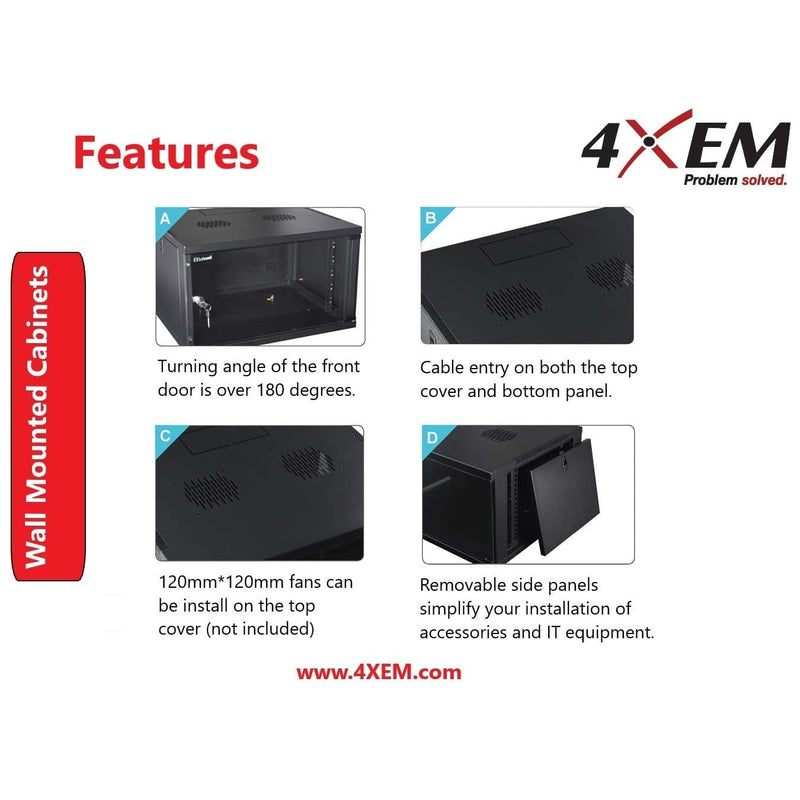

Features:
- 4XEM unmatched limited 1year warranty
- Lifetime support
- Houses 6U 19" rack-mount equipment
- 24" deep
- Compatible with 19" equipment EIA-standard
- Keep servers and all networking gear organized and cool
- Saves space and permits easy access for maintenance
- Frame-less Tempered glass front door
- 180 degree turning angle
- Removable side panels
- Cable entry on both top and bottom of the cabinet
- Removable side panels for ease of installing network gear
Specifications:
| Warranty Information | ||
| Warranty | 1 Year | |
| Hardware | ||
| Fan Options | Two Optional 120 mm (Top) | |
| Frame Type | Enclosed Cabinet | |
| Front Door Construction | Tempered Glass | |
| Front Door Features | Secure Key Lock with Reversible and Removable Front Door | |
| Rear Swing Hinge | No | |
| Industry Standards | EIA/ECA-310-E | |
| Mounting Hole Types | Square (For Cage Nut) | |
| Mounting Rail Profile | L-Shape | |
| Support Rails | None | |
| Rack Type | 4-Post | |
| Side Panel Construction | Steel | |
| Side Panel Type | Removable | |
| Side Panel Locks | None | |
| U Height | 6U | |
| Wall Mountable | Yes | |
| Performance | ||
| Weight Capacity | 45 kg | |
| Physical Characteristics | ||
| Color | Black | |
| Construction Material | SPCC Cold Rolled Steel & Tempered Glass | |
| Product Measurements | ||
| Product Height | 350 mm | |
| Product Width | 540 mm | |
| Product Depth | 600 mm | |
| Maximum Mounting Depth | approx. 460 mm | |
| Weight of Product | 12 kg | |
| Packaging Information | ||
| Flat Pack (Assembly Required) | No | |
| Package Height | 365 mm | |
| Package Width | 565 mm | |
| Package Depth | 625 mm | |
| Shipping (Package) Weight | 14 kg | |
| Shipping Volume | 0.129 CBM | |
| What's in the Box | ||
| Included in Package | 1 - 6U Deep Server Rack Cabinet | |
| 12 - M6 Screws/Washers/Nuts | ||
| 4 - Wall Anchors (Concrete) | ||
| 2 - Keys |
