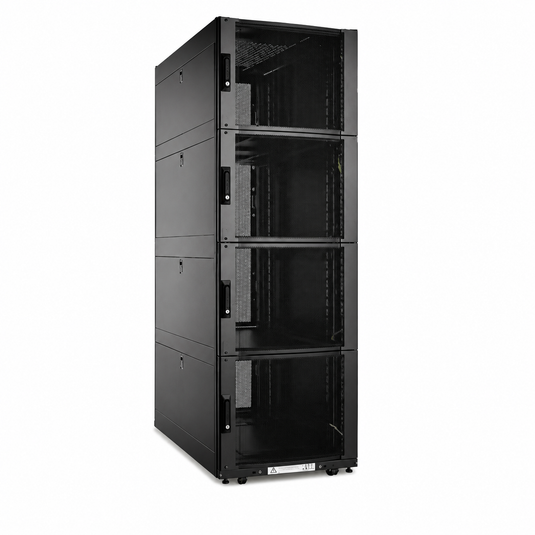

4XEM 42U 4-Compartment 19-Inch Server Rack Cabinet

Organize shared IT infrastructure with the 4XEM 42U Four-Compartment 19-Inch Server Rack Cabinet. Designed for multi-tenant colocation, data centers, server rooms, enterprise IT, education, and other shared equipment environments, this floor-standing cabinet divides its rack space into four independent compartments for greater control over equipment organization and access.

Each compartment features independent 19-inch adjustable-depth vertical mounting rails and dedicated side panels with combination locks. Combination locks on the front and rear doors provide additional access control, making the cabinet well suited for installations where rack-mounted equipment needs to be organized within separate sections of a shared enclosure.

Built from durable SPCC cold-rolled steel, the cabinet supports up to 3,307 lb [1500 kg] of static load and 2,204.6 lb [1000 kg] of dynamic load. Its 23.62 x 39.37 in [600 x 1000 mm] footprint provides the depth needed to accommodate a wide range of compatible servers, networking equipment, and other 19-inch rack-mounted hardware.

Perforated front and rear doors feature a 78% perforation rate to promote airflow through installed equipment. Top and bottom cable entry points, along with an included cable management rail, provide flexible options for routing and organizing power and data cabling. The cabinet also supports a fan tray for installations requiring additional active cooling.

Included 2-inch casters make the cabinet easier to position during installation, while leveling feet provide a stable final setup. Supplied in a knock-down, flat-pack configuration, the 4XEM Four-Compartment Server Rack combines high load capacity, separated equipment organization, access control, and flexible rack installation in one 42U enclosure.

Features

• 42U four-compartment cabinet design
• Standard 19-inch rack compatibility
• 23.62 x 39.37 x 78.43 in [600 x 1000 x 1992 mm]
• Up to 3,306.9 lb [1500 kg] static load capacity
• Up to 2,204.6 lb [1000 kg] dynamic load capacity
• Independent adjustable-depth mounting rails
• Numbered U positions
• Perforated front and rear doors
• 78% door perforation rate
• Combination-lock front and rear doors
• Independent side panels with combination locks
• Greater than 130° door opening angle
• Top and bottom cable entry
• Cable management rail included
• Fan tray support
• 2-inch casters and leveling feet
• SPCC cold-rolled steel construction
• Black RAL9005 powder-coated finish
• IP20 protection rating
• CE and RoHS certified
• 40 sets of cage nuts included
• Knock-down, flat-pack design

Benefits

• Organize Shared Rack Space: Four independent compartments provide separated areas for organizing equipment within a single 42U cabinet.
• Control Equipment Access: Combination locks on the front and rear doors, along with independently locking compartment side panels, help manage physical access in shared installations.
• Support High-Density Installations: A robust steel structure supports up to 3,307 lb [1500 kg] of static equipment load for demanding server, networking, and data center deployments.
• Improve Equipment Airflow: Front and rear doors with 78% perforation provide an open airflow path through the cabinet while maintaining an enclosed rack design.
• Adapt Equipment Installation: Independent adjustable-depth 19-inch mounting rails provide greater flexibility when configuring equipment within each compartment.
• Simplify Cable Management: Top and bottom cable entry points and an included cable management rail provide flexible routing and organization for power and data cabling.
• Expand Cooling When Required: Fan tray support allows active cooling to be added based on the requirements of the installation.
• Simplify Positioning and Installation: Included 2-inch casters help move the cabinet into position, while leveling feet provide stability after placement.

Specifications:
