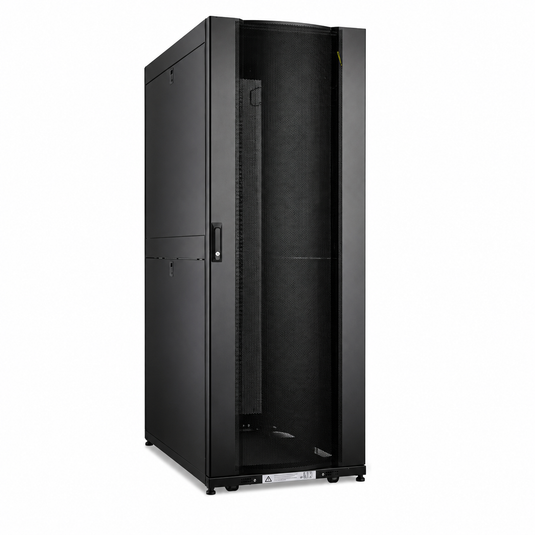

4XEM 42U 19-Inch Enterprise Server Rack Cabinet

Build a high-capacity foundation for demanding IT infrastructure with the 4XEM 42U 19-Inch Enterprise Server Rack Cabinet. Designed for servers, storage arrays, network equipment, and other rack-mounted hardware, this floor-standing enclosure combines a spacious 31.5-inch [800 mm] width and 42.13-inch [1070 mm] depth with a substantial 3,307 lb [1500 kg] static and dynamic load capacity.

The extra-wide 31.5-inch [800 mm] cabinet design provides additional space for cable routing and organization, while adjustable-depth 19-inch vertical mounting rails accommodate a variety of compatible equipment depths. Numbered U positions simplify equipment placement, and an included cable management rail helps keep power and data cabling organized.

Perforated mesh front and rear doors feature a 78% perforation rate to provide an open airflow path through the cabinet. Both doors open up to 170° for convenient equipment access and feature swing-handle locks. Removable locking side panels provide additional access to installed equipment while helping control physical access to the cabinet.

Top and bottom cable entry points provide flexible cable routing, while fan tray support allows active cooling to be added based on installation requirements. Included 2-inch casters simplify positioning, and leveling feet provide a stable final installation.

Unlike flat-pack rack cabinets, the 4XEM 42U Enterprise Server Rack is supplied assembled, reducing on-site cabinet assembly requirements. With its high load capacity, extra-wide design, deep equipment space, and flexible cable management, it is well suited for enterprise data centers and other demanding IT installations.

Features

• 42U floor-standing server rack
• Standard 19-inch rack compatibility
• 31.50 x 42.13 x 78.43 in [800 x 1070 x 1992 mm]
• Up to 3,306.9 lb [1500 kg] static load capacity
• Up to 3,306.9 lb [1500 kg] dynamic load capacity
• Extra-wide 31.5-inch [800 mm] cabinet design
• Adjustable-depth vertical mounting rails
• Numbered U positions
• 78% perforated mesh front and rear doors
• 170° door opening angle
• Locking front and rear swing handles
• Removable locking side panels
• Top and bottom cable entry
• Cable management rail included
• Fan tray support
• 2-inch casters and leveling feet
• SPCC cold-rolled steel construction
• Black RAL9005 powder-coated finish
• IP20 protection rating
• CE and RoHS certified
• 50 cage nut sets included
• Ships assembled

Benefits

• Support Heavy IT Deployments: A 3,307 lb [1500 kg] static and dynamic load capacity supports demanding installations with servers, storage systems, networking equipment, and other compatible rack hardware.
• Gain More Cable Management Space: The extra-wide 31.5-inch [800 mm] cabinet provides additional room for routing and organizing cabling alongside installed equipment.
• Accommodate Deep Equipment: The 42.13-inch [1070 mm] cabinet depth and adjustable mounting rails provide flexibility for compatible servers, storage arrays, and other deep rack-mounted hardware.
• Promote Equipment Airflow: Front and rear mesh doors with 78% perforation provide an open airflow path through the cabinet.
• Simplify Equipment Access: Front and rear doors open up to 170°, while removable side panels provide multiple access points during installation and maintenance.
• Organize Power and Data Cabling: Top and bottom cable entry points and the included cable management rail provide flexible options for routing cables throughout the cabinet.
• Add Active Cooling When Needed: Fan tray support allows additional cooling hardware to be installed based on the requirements of the rack environment.
• Reduce On-Site Assembly: The cabinet ships assembled, eliminating the need to construct the main rack enclosure before equipment installation.
