4XEM 15U 24” Deep Wall Mount Server Rack
4XEM 15U 19" wall mounted server rack provides a durable and solid design for rackmount servers, switches and other networking equipment. Our deeper cabinets offer 24" of space for larger rackmount equipment such as High-Capacity PoE Switches. The 4XEM 15U server cabinet features heavy gauge material to ensure a stable installation platform. The universal standard design is compatible with 19" equipment from popular manufacturers. The 4XEM deep wall mounted racks all have a 180 degree lockable front tempered glass door, removable side panels, and cable entry locations at the top and bottom of the cabinet. They also sport 2x 120mm fan cutouts on the top panel for optional cooling. They are designed specifically for small business, home offices, restaurants, classrooms and IT professionals!

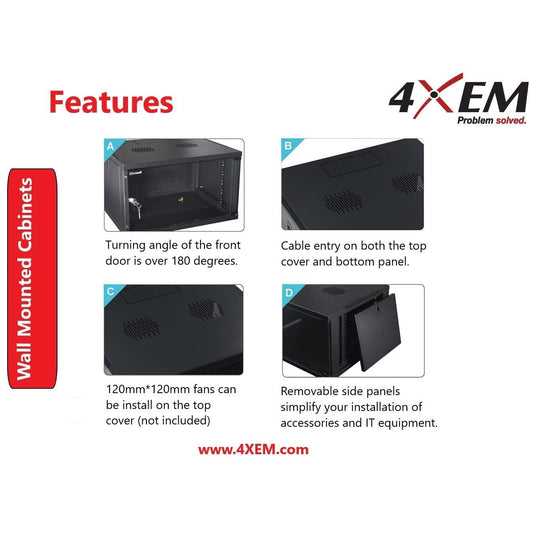

Features:
- 4XEM unmatched limited 1year warranty
- Houses 15U 19" rack-mount equipment
- 24" deep
- Compatible with 19" equipment EIA-standard
- Keep servers and all networking gear organized and cool
- Saves space and permits easy access for maintenance
- Frame-less Tempered glass front door
- 180 degree turning angle
- Removable side panels
- Cable entry on both top and bottom of the cabinet
- Removable side panels for ease of installing network gear
Specifications:
| Warranty Information | ||
| Warranty | 1 Year | |
| Hardware | ||
| Fan Options | Two Optional 120 mm (Top) | |
| Frame Type | Enclosed Cabinet | |
| Front Door Construction | Tempered Glass | |
| Front Door Features | Secure Key Lock with Reversible and Removable Front Door | |
| Rear Swing Hinge | No | |
| Industry Standards | EIA/ECA-310-E | |
| Mounting Hole Types | Square (For Cage Nut) | |
| Mounting Rail Profile | L-Shape | |
| Support Rails | None | |
| Rack Type | 4-Post | |
| Side Panel Construction | Steel | |
| Side Panel Type | Removable | |
| Side Panel Locks | None | |
| U Height | 15U | |
| Wall Mountable | Yes | |
| Performance | ||
| Weight Capacity | 45 kg | |
| Physical Characteristics | ||
| Color | Black | |
| Construction Material | SPCC Cold Rolled Steel & Tempered Glass | |

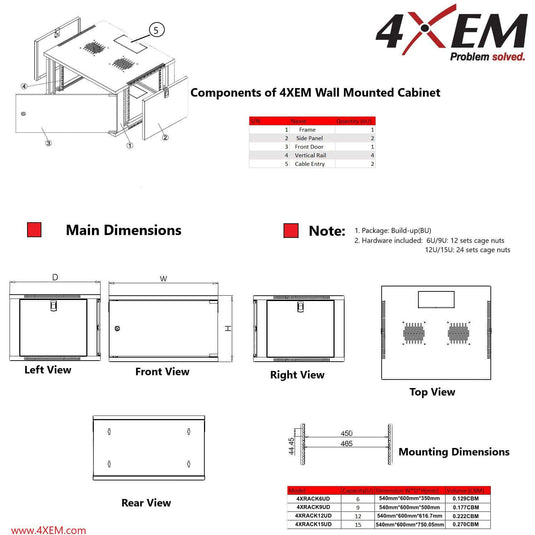

| Product Measurements | ||
| Product Height | 750.05 mm | |
| Product Width | 540 mm | |
| Product Depth | 600 mm | |
| Maximum Mounting Depth | approx. 460 mm | |
| Weight of Product | 22 kg | |
| Packaging Information | ||
| Flat Pack (Assembly Required) | No | |
| Package Height | 765 mm | |
| Package Width | 565 mm | |
| Package Depth | 625 mm | |
| Shipping (Package) Weight | 24 kg | |
| Shipping Volume | 0.270 CBM | |
| What's in the Box | ||
| Included in Package | 1 - 12U Deep Server Rack Cabinet | |
| 24 - M6 Screws/Washers/Nuts | ||
| 4 - Wall Anchors (Concrete) | ||
| 2 - Keys |
