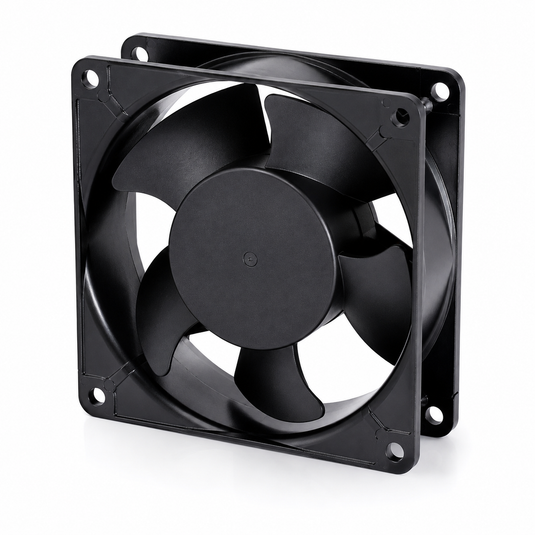

4XEM 120mm Cabinet Cooling Fan for Server & Network Racks
Improve airflow and heat dissipation inside compatible server and network cabinets with the 4XEM 120mm Cabinet Cooling Fan. Designed for wall-mount server and network cabinets, this compact AC axial fan provides active cooling to help move warm air and support better airflow around installed IT and networking equipment.
Operating at 2200 RPM ±10%, the fan delivers up to 68 CFM of airflow while consuming just 18W of power. Its compact 120 × 120 × 40 mm design makes it suitable for compatible cabinet fan mounting locations where additional active airflow is required.
Built with a durable SPCC steel housing and black electrostatic powder-coated finish, the fan is designed for indoor cabinet installations. The sleeve-bearing fan operates from 110-120V AC power and includes a 2 m power cable for convenient connection within your rack installation.
Complete with M6 mounting hardware, the 4XEM 120mm Cabinet Cooling Fan provides a simple way to add active air cooling to compatible wall-mount server and network cabinets.
Features
- Single 120 × 120 × 40 mm AC axial fan
- Up to 68 CFM airflow
- 2200 RPM ±10% fan speed
- 110-120V AC operation
- 18W power consumption
- ≤0.20A rated current
- 44 dB(A) noise level
- Sleeve bearing design
- 6.4 mmH₂O static pressure
- 2 m power cable included
- Screw-mount installation
- SPCC steel construction
- Black electrostatic powder-coated finish
- M6 mounting hardware included
Benefits
- Improve Cabinet Airflow: Provides up to 68 CFM of active airflow to help move warm air within compatible server and network cabinets.
- Support Heat Dissipation: Adds dedicated active cooling around rack-mounted IT and networking equipment.
- Compact Cooling Solution: The 120 × 120 × 40 mm design fits compatible cabinet fan mounting locations without requiring a rack shelf.
- Simple Power Connection: Included 2 m power cable provides additional reach for connecting the fan within the cabinet installation.
- Easy to Install: Screw-mount design and included M6 mounting hardware simplify installation in compatible wall-mount cabinets.
- Built for Cabinet Environments: SPCC steel construction and a powder-coated finish provide a durable solution for indoor server and network cabinet applications.
Specifications:
| Warranty Information | Warranty | 1 year |
| Hardware | Product Type | Cabinet Cooling Fan |
| Number of Fans | 1 | |
| Fan Size | 120 × 120 × 40 mm | |
| Fan Mount | AC Axial Cooling Fan | |
| Installation | Screw Mount | |
| Material | SPCC Cold Rolled Steel | |
| Finish | Electrostatic Powder Coated | |
| Compatible Rack Type | Wall Mount Server/Network Cabinets | |
| Connector(s) | Power Input | 110–120V AC |
| Power Cable Length | 2m | |
| Performance | Rated Voltage | 110-120V AC |
| Input Frequency | 50 Hz | |
| Power Consumption | 18W | |
| Rated Current | ≤0.20A | |
| Fan Speed | 2200 RPM ±10% | |
| Airflow | 68 CFM | |
| Noise Level | 44 dB(A) | |
| Bearing Type | Sleeve Bearing | |
| Static Pressure | 6.4 mmH₂O | |
| Cooling Function | Active Air Cooling | |
| Temperature Monitoring | N/A | |
| Physical Characteristics | Color | Black |
| Housing Material | SPCC Steel | |
| Mounting Style | Cabinet Mount / Screw Mount | |
| Product Width | 4.72 in [120 mm] | |
| Product Length | 4.72 in [120 mm] | |
| Product Height | 1.57 in [40 mm] | |
| Product Weight | 1.10 lb [0.50 kg] | |
| Environmental | Application | Wall Mount Server/Network Cabinets |
| Packaging Information | Package Type | Box [1 pc per carton] |
| Package Height | 6.69 in [170 mm] | |
| Package Width | 5.51 in [140 mm] | |
| Package Length | 2.36 in [60 mm] | |
| Shipping (Package) Weight | 1.43 lb [0.65 kg] | |
| What's in the Box | Included in Package | 1x Cooling Fan |
| 2m Power Cable | ||
| 4 sets of M6 Screws, Washers, and Cage Nuts | ||
| Notes | ||
| * Product appearance and specifications are subject to change without notice. | ||
| * Weights and measurements are approximate. | ||
