4XEM Active USB-C to HDMI 2.1 Adapter – 8K 60Hz, 4K 144Hz
Connect a USB-C video source to an HDMI display with 4XEM’s active USB-C to HDMI adapter. It supports up to 8K at 60Hz, 4K at 144Hz, and 2K at 165Hz or 240Hz, giving you high-resolution output for detailed work, presentations, and entertainment.

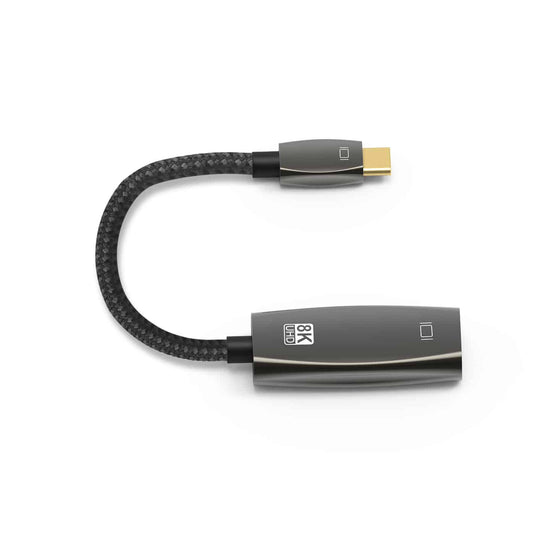

The adapter features a USB-C male connector, an HDMI female port, gold-plated connectors, and a braided PVC cable. Its unidirectional design sends video from the USB-C source to the HDMI display. It draws power from the host device, so no separate power adapter is required. The USB-C port must support DisplayPort Alt Mode for video output.
Features
- Up to 8K at 60Hz: Displays detailed visuals on a compatible 8K screen.
- High-refresh-rate options: Supports up to 4K at 144Hz or 2K at 165Hz or 240Hz.
- HDMI 2.1 output: Provides a modern connection for compatible HDMI displays.
- Active, unidirectional design: Sends video from a USB-C source to an HDMI display.
- Braided PVC cable: Adds durability for regular handling and connection.
- Gold-plated connectors: Provide dependable physical connections.
- Bus powered: Operates without a separate power adapter.
Benefits
- Expand your display options: Connect a compatible USB-C laptop or desktop to an HDMI monitor, TV, or projector.
- Choose the resolution and refresh rate that fit your setup: Support detailed 8K visuals or smoother motion at the listed 4K and 2K refresh rates.
- Keep setup simple: Plug the adapter into a USB-C port with DisplayPort Alt Mode and connect your HDMI cable.
- Reduce cable wear: The braided jacket helps protect the adapter during everyday use.
Specifications
| Warranty Information | Warranty | 1 Year |
| Hardware | Operating Mode | Active |
| Direction | Unidirectional | |
| Industry Standards | DisplayPort 1.4a Alt-Mode | |
| HDMI 2.1 | ||
| Certifications | RoHS and REACH compliant | |
| Connector(s) | Connector A (Source) | USB Type-C - Male |
| Connector B (Display) | HDMI - Female | |
| Connector Plating | Gold Plated | |
| Performance | Max Uncompressed Bandwidth | HDMI 2.1 48Gbps |
| Maximum Digital Resolutions | 7680x4320 (8K) @ 60Hz | |
| 3840x2160 (4K) @ 144Hz | ||
| 2K @ 165 Hz or 240 Hz | ||
| Power | Power Source | Bus Powered |
| Physical Characteristics | Adapter Style | Pig-Tail |
| Color | Black/Grey | |
| Cable Jacket Type | Braided PVC | |
| Cable OD | 0.19 in [4.8 mm], including braid | |
| Cable Length | 4.12 in [104.7 mm] | |
| Total Length | 8.11 in [206.0 mm] | |
| Weight of Product | 0.67 oz [18.99 g] | |
| Packaging Information | Packaging Type | Poly-bag |
| Package Height | 6.69 in [170 mm] | |
| Package Width | 5.12 in [130 mm] | |
| Package Length | 0.43 in [11 mm] | |
| Shipping (Package) Weight | 1.34 oz [38 g] | |
| What's in the Box | Included in Package | 1x 8K USB-C to HDMI Adapter |
| Notes | System Requirements | An available USB Type-C port that supports DP Alt-Mode is required. |
| Notes | This adapter is unidirectional. It will only function when connecting a USB-C video source to an HDMI display. Higher bandwidths (resolution, refresh rate, color depth) are achievable with DSC (This feature must also be supported by your display and graphics card/video source equipment). Backwards compatible with HDMI 2.0 and previous revisions. |
|
| * Product appearance and specifications are subject to change without notice. | ||
| * Weights and measurements are approximate. | ||
Product Overview
4XEM Active USB-C to HDMI 2.1 Adapter – 8K 60Hz, 4K 144Hz
Connect a USB-C video source to an HDMI display with 4XEM’s active USB-C to HDMI adapter. It supports up to 8K at 60Hz, 4K at 144Hz, and 2K at 165Hz or 240Hz, giving you high-resolution output for detailed work, presentations, and entertainment.
The adapter features a USB-C male connector, an HDMI female port, gold-plated connectors, and a braided PVC cable. Its unidirectional design sends video from the USB-C source to the HDMI display. It draws power from the host device, so no separate power adapter is required. The USB-C port must support DisplayPort Alt Mode for video output.
Features
- Up to 8K at 60Hz: Displays detailed visuals on a compatible 8K screen.
- High-refresh-rate options: Supports up to 4K at 144Hz or 2K at 165Hz or 240Hz.
- HDMI 2.1 output: Provides a modern connection for compatible HDMI displays.
- Active, unidirectional design: Sends video from a USB-C source to an HDMI display.
- Braided PVC cable: Adds durability for regular handling and connection.
- Gold-plated connectors: Provide dependable physical connections.
- Bus powered: Operates without a separate power adapter.
Benefits
- Expand your display options: Connect a compatible USB-C laptop or desktop to an HDMI monitor, TV, or projector.
- Choose the resolution and refresh rate that fit your setup: Support detailed 8K visuals or smoother motion at the listed 4K and 2K refresh rates.
- Keep setup simple: Plug the adapter into a USB-C port with DisplayPort Alt Mode and connect your HDMI cable.
- Reduce cable wear: The braided jacket helps protect the adapter during everyday use.
Specifications
| Warranty Information | Warranty | 1 Year |
| Hardware | Operating Mode | Active |
| Direction | Unidirectional | |
| Industry Standards | DisplayPort 1.4a Alt-Mode | |
| HDMI 2.1 | ||
| Certifications | RoHS and REACH compliant | |
| Connector(s) | Connector A (Source) | USB Type-C - Male |
| Connector B (Display) | HDMI - Female | |
| Connector Plating | Gold Plated | |
| Performance | Max Uncompressed Bandwidth | HDMI 2.1 48Gbps |
| Maximum Digital Resolutions | 7680x4320 (8K) @ 60Hz | |
| 3840x2160 (4K) @ 144Hz | ||
| 2K @ 165 Hz or 240 Hz | ||
| Power | Power Source | Bus Powered |
| Physical Characteristics | Adapter Style | Pig-Tail |
| Color | Black/Grey | |
| Cable Jacket Type | Braided PVC | |
| Cable OD | 0.19 in [4.8 mm], including braid | |
| Cable Length | 4.12 in [104.7 mm] | |
| Total Length | 8.11 in [206.0 mm] | |
| Weight of Product | 0.67 oz [18.99 g] | |
| Packaging Information | Packaging Type | Poly-bag |
| Package Height | 6.69 in [170 mm] | |
| Package Width | 5.12 in [130 mm] | |
| Package Length | 0.43 in [11 mm] | |
| Shipping (Package) Weight | 1.34 oz [38 g] | |
| What's in the Box | Included in Package | 1x 8K USB-C to HDMI Adapter |
| Notes | System Requirements | An available USB Type-C port that supports DP Alt-Mode is required. |
| Notes | This adapter is unidirectional. It will only function when connecting a USB-C video source to an HDMI display. Higher bandwidths (resolution, refresh rate, color depth) are achievable with DSC (This feature must also be supported by your display and graphics card/video source equipment). Backwards compatible with HDMI 2.0 and previous revisions. |
|
| * Product appearance and specifications are subject to change without notice. | ||
| * Weights and measurements are approximate. | ||
