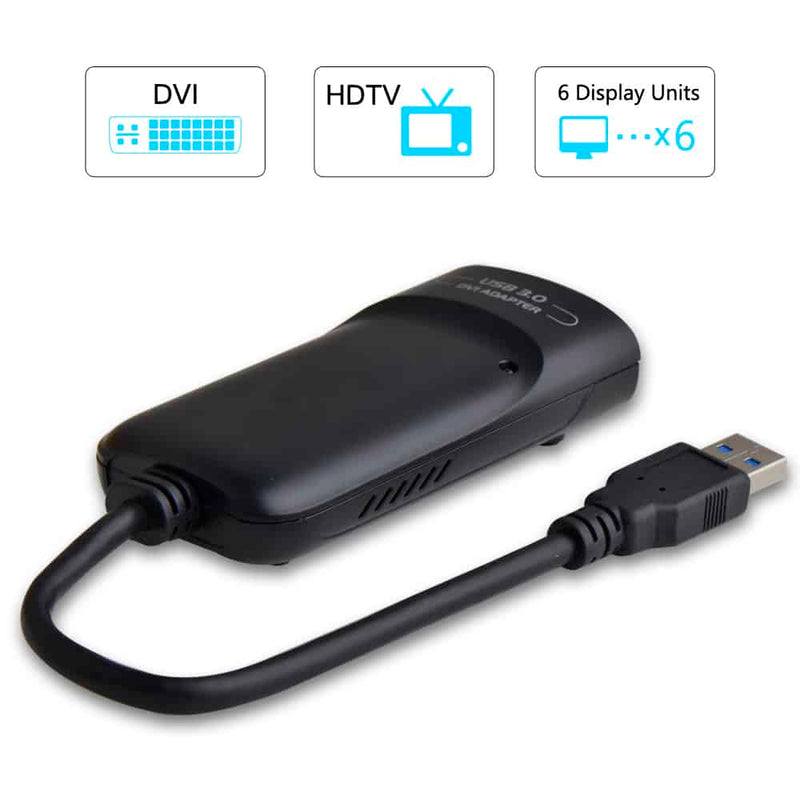

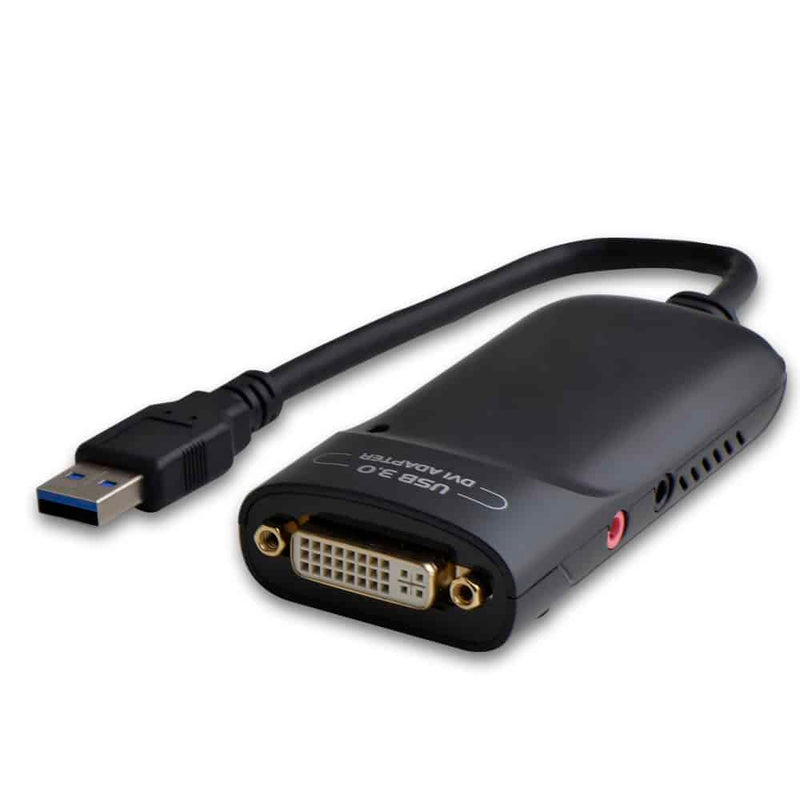

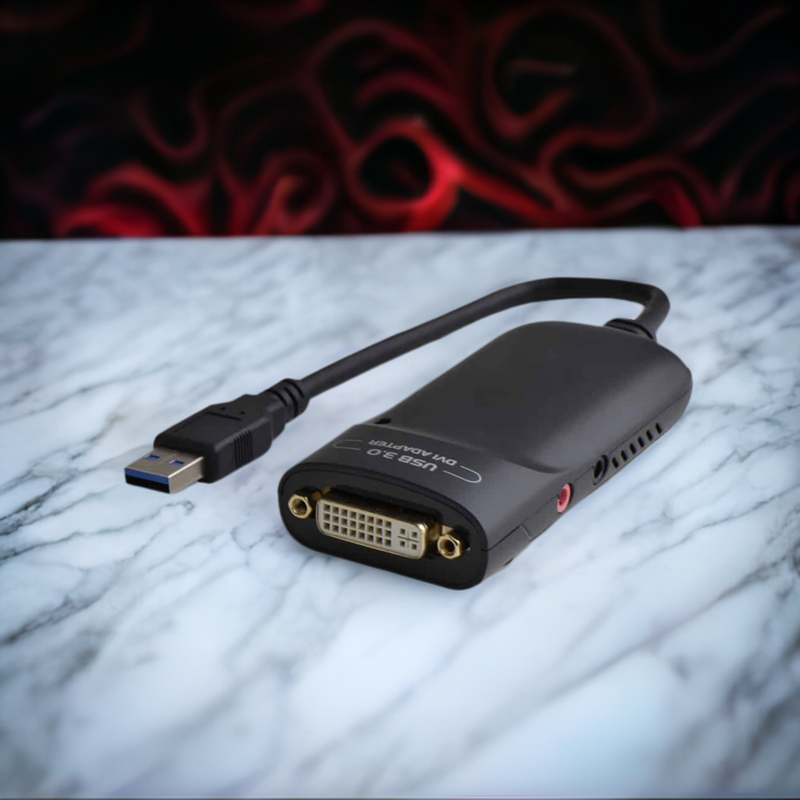

4XEM USB 3.0 to DVI Display Adapter
4XEM’s USB 3.0 to DVI adapter offers the ability to connect your USB and DVI devices through the USB cable with high quality resolution (up to 2048 x 1152). The device takes the hassle of lengthy setups and removes the need to install additional hardware to connect your DVI displays. The USB connection is backwards compatible with USB 2.0 and offers 5Gbps connection speeds with no extra power source needed. Along with backwards compatibility, this device is compatible with various Windows versions (i.e. 10/8.1/Vista/XP). Connect your devices easily with 4XEM’s USB 3.0 to DVI Display Adapter.
Problem it solves: Connect your DVI displays easily through USB 3.0 connection.
Features:
- USB3.0 compatibility with USB2.0 compatibility
- Resolution up to 2048 x 1152 (for one display

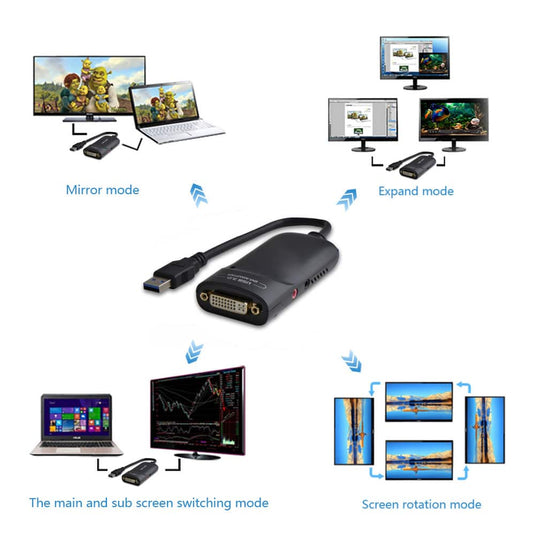

- Capable Primary / Extend / Mirror Video Mode
- Able to extend the display up to 6 Display units
- Supports DVI-I
Specifications:
| Warranty Information | Warranty | 1 Year |
| Hardware | Host Bus Type | USB 3.0 |
| Interface | DVI 24+5 pin | |
| 2x 3.5mm TRS | ||
| Industry Standards | USB 3.0 | |
| DVI-I | ||
| VGA | ||
| Flash | 8MB | |
| SDRAM | 512MB DDR2 | |
| Chipset ID | DisplayLink - DL3500 | |
| Connector(s) | Host Connector | USB 3.0 Type-A (5Gbps) |
| Host Connector Type | Direct Attached | |
| Connector Type(s)/Rate(s) | DVI 24+5 Female (SL Bandwidth 4.95Gbps) | |
| 3.5mm TRS Line In | ||
| 3.5mm TRS Line Out | ||
| Performance | Maximum Digital Resolution | 2048 x 1152 @ 60Hz, 8bpc |
| Analog Operation | Yes (via DVI to VGA adapter) | |
| Software | OS Compatibility | Windows® Vista, 7, 8, 8.1, 10 |
| Mac OSX (10.4 or later) | ||
| Linux | ||
| Power | Power Source | USB-Powered |
| Power Consumption | 1W | |
| Physical Characteristics | Product Height | 0.87 in |
| Product Width | 2.05 in | |
| Product Length | 3.78 in | |
| Weight of Product | 2.26 oz | |
| Color | Black | |
| Material | ABS Plastic | |
| Cable Length | 6.10 in | |
| LED Indicators | Power/Activity (Green) | |
| Environmental | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Packaging Information | Package Height | 2.09 in |
| Package Width | 8.27 in | |
| Package Length | 5.51 in | |
| Shipping (Package) Weight | 9.45 oz | |
| What's in the Box | Included in Package | USB 3.0 DVI Adapter |
| DVI-VGA Adapter | ||
| DVI-HDMI Adapter | ||
| Paper Driver CD | ||
| Instruction Manual | ||
| Special Notes / Requirements | Minimum System Requirements | Available USB port |
| CPU: Intel Core 2 Duo @ 2.0GHz | ||
| RAM: 1GB | ||
| * Product appearance and specifications are subject to change without notice. | ||
| * Weights and measurements are approximate. | ||
